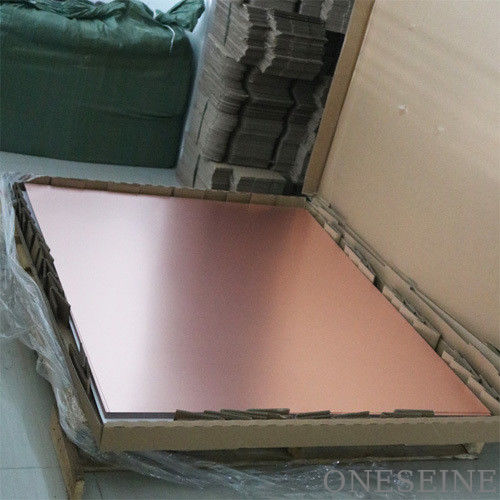

HASL Rogers 4003 PCB Rogers 0.2mm-6.35mm 4003c Dielectric Constant

Rogers 4003 PCB Dielectric Material Price Information

Generally normal fr4 mateiral,we use KB or Shengyi,this is common material,which is in stock all around the year

About HIGH FREQUENCY PCB material:

Rogers:

Rogers 4000 is widely used,so this types also have sufficient in stock

Rogers 5880,thickness below 1.5MM,have sufficient in stock, and 1.524MM this one have small quantity

Rogers 5870 and 3210 is rarely,only when have requirements,then we order material,delivery time need at least 4 weeks

Rogers 3000 series,oly rogers 3003 full range of thickness we have in stock,

Rogers 3010 and 3006,have some part thickness in stock

Rogers 6000 series material is the most expensive

Taconic:

Generally,most models we have in stock

The normal and widely used in Taconic TLX series

Isola:

Isola 370HR,FR series widely used

For any other brand and other model,please contact us directly

Aluminum material  more information

Bergquist  (The material is very costly,but it is top quality in the world)

Polytronics (Very popular MC material ,made in TaiWan)

ChaoShun  (Very good Aluminum material supplier in China)

Flexible pcb material:

Polymide

RT/duriod

Rogers RT/duroid® high-frequency circuit materials are filled PTFE (irregular glass or ceramic) composite coversfor use in high reliability, aviation and defense applications. The RT/duroid types have a long industry nearness of providing high-reliability materials with predominant performance. This kind of material has several benefits:

1 Low electrical loss,
2. Low moisture absorption,
3. Stable dielectric constant (Dk) over a wide frequency range, and
4. Low outgassing for space applications.

RO3000

RO3000 laminates are ceramic filled PTFE composites intended for use in the commercial microwave and RF applications. R03000 series laminates are circuit materials with very consistent mechanical properties regardless of the dielectric constant selected. Due to this characteristic, when designing multi-layer boards with varying dielectric constants, there will be very little issues if any at all The dielectric constant VS temperature of RO3000 series materials is very stable. RO3000 laminates also are available in a wide range of dielectric constants (3.0 to 10.2). The most common applications are:

1. Surface mount RF components,
2.GPS antennas, and
3. Power amplifiers.

RO4000

RO4000 laminates and pre-pregs possess favorable properties that are highly useful in microwave circuits and instances where controlled impedance is needed. This series of laminates are very price optimized and are also fabricated using standard FR4 processes which makes it suitable for multi-layer PCBs. Additionally, it can be processed lead-free. The series of RO4000 laminates offer a range of dielectric constants (2.55-6.15) and are available with UL 94 V-0 flame retardant versions. The most popular applications of this are:

1. RFID chips,
2. Power amplifiers,
3. Automotive radars, and
4. Sensors.

TMM®
Rogers TMM® thermoset microwave laminates fuse dielectric constant uniformity, low thermal coefficient of dielectric constant (Dk), and a copper matched coefficient of thermal expansion. Because of their electrical and mechanical stability, TMM high-frequency laminates are perfect for high-reliability strip-line and micro-strip applications. This kind of material has several benefits:

1. Wide range of dielectric constants (Dks),
2.Excellent mechanical properties, cold flow, and resists creep,
3. Exceptionally low thermal coefficient of Dk,
4. Coefficient of thermal expansion fit to copper taking into account high reliability of plated through-holes,
5. Available copper clad in larger formats, allowing the use of standard PCB subtractive processes,
6. No wreck to materials during fabrication and assembly processes,  Resistant to process chemicals,
7. Thermoset resin for reliable wire bonding,
8. No specialized production techniques required,
9. TMM 10 and 10i laminates can replace alumina substrates, and
10. RoHS compliant, environmentally friendly.Below is a table that shows the characteristics of various types of PCB materials.
