Rogers PCB Boards 4003 Material Dielectric Constant Manufacturer

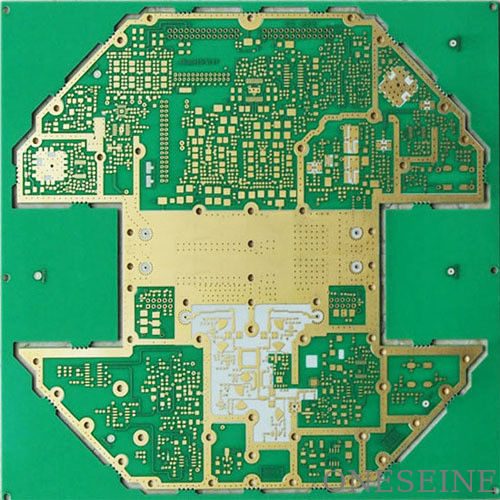

Brief technology:
|
Material
|
Rogers
|
Solder mask
|
Green
|
|
Thickness
|
1.6mm
|
Silkscreen
|
White
|
|
Layer
|
4
|
Board size
|
12*16cm
|
|
Surface
|
ENIG
|
Min line
|
3mil
|
|
Copper
|
2OZ
|
Min hole
|
0.15mm
|
Why choose us for your PCB boards manufacturer:
1. Competitive price, Perfect quality, Quick delivery
2. OEM are welcome
3. One-stop service
4. ROHS, ISO9001, ISO14001, TS16949, UL
5. 24 hours technique Support
6. Experienced Impedance Designer
7.Over 20 years experience in PCB&PCBA&TV BOX
8. 24 hours English Engineering Questions Confirmation by E-mail
PCB boards manufacturer capability:
|
Items
|
Normal Standard
|
Ultimate
|
|
Material
|
FR-4;High TG FR-4;CEM-3;CEM-4
|
Al-Base
|
|
Layer NO.
|
1-20
|
40
|
|
Board Size
|
50mm*50mm—560mm*640mm
|
35mm*50mm
|
|
Board Thickness
|
0.4mm-4.0mm
|
0.3mm—6.0mm
|
|
Thickness Tolerance
|
±10%
|
±7%
|
|
Min Hole Size
|
0.2mm
|
0.15mm
|
|
Copper Thickness
|
18um—105um
|
18um—420um
|
|
Copper Plating Hole
|
18um—30um
|
18um—40um
|
|
Min Trace Width
|
0.1mm
|
0.75mm
|
|
Min Space Width
|
0.1mm
|
0.75mm
|
|
SMD Pitch
|
0.4mm
|
0.4mm
|
|
BGA Pitch
|
0.6mm
|
0.6mm
|
|
Min Annual Ring
|
0.07mm
|
0.05mm
|
|
Register Tolerance
|
0.05mm
|
0.025mm
|
|
Solder Mask Color
|
Green;Blue;Black;Red
|
white; yellow
|
|
Peelable Mask
|
0.3mm
|
0.5mm
|
|
HASL Thickness
|
2.5um
|
|
|
Lead Free HASL
|
2.5um
|
|
|
Immersion Gold
|
Nickel:47um Au:0.05um
|
Nickel:7um Au:0.2um
|
|
OSP Thickness
|
0.2-0.5um
|
|
|
Outline Tolerance
|
CNC:±0.1mm; V-CUT:±0.1mm; Punching:±0.15mm
|
|
|
Impedance Control
|
±10%
|
±7%
|
|
Warpage
|
Less than 1%
|
Less than 0.7%
|
|
Certificate
|
ISO9001;TS16949
|
|
What are some other popular materials used for high-frequency PCBs?
In addition to Rogers PCB materials, there are several other popular materials used for high-frequency PCBs. Here are a few examples:
Isola: Isola is a leading manufacturer of high-performance laminate and prepreg materials for PCBs. They offer materials like IS410, IS620, and Astra MT that are specifically designed for high-frequency applications. Isola materials provide excellent electrical properties, low loss, and high thermal reliability.
Taconic: Taconic is another well-known manufacturer of high-frequency PCB materials. Their popular product lines include RF-35, RF-35A, and TLX. These materials offer low dielectric loss, high thermal conductivity, and good mechanical stability, making them suitable for high-frequency and high-power applications.
Arlon: Arlon specializes in high-frequency laminates and prepregs for PCBs. Their product lineup includes materials like 85N, 85HP, and 55NT. Arlon materials have low loss, high thermal conductivity, and good dimensional stability, making them suitable for applications requiring high-frequency performance.
Nelco: Nelco, a subsidiary of Park Electrochemical Corp., offers a range of high-frequency PCB materials. Their popular products include N4000-13EP and N7000-2. These materials have low dielectric loss, high glass transition temperature, and good dimensional stability, making them suitable for high-speed digital and RF applications.
Panasonic/Megtron: Panasonic and Megtron (a product line of Panasonic) offer high-performance laminates suitable for high-frequency PCBs. Megtron 6 and Megtron 7 are their popular materials that provide low loss, excellent electrical properties, and high reliability for high-frequency applications.
It's important to note that the selection of materials for high-frequency PCBs depends on the specific application requirements and design considerations. Working with PCB manufacturers and material suppliers experienced in high-frequency designs can help in choosing the right material for a particular application.
