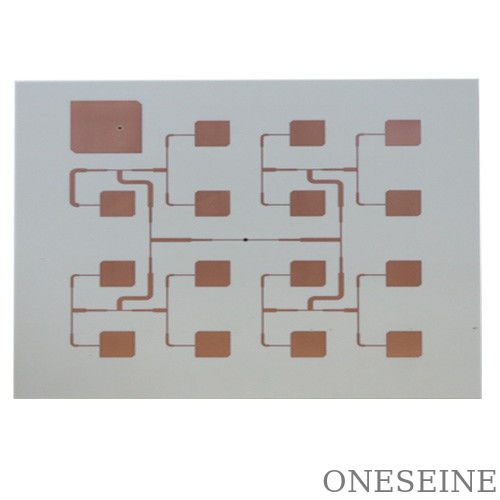

16*19cm High Frequency Circuit Board Insulated With Organic Resin Coating Material

Product Description:

High Frequency PCB, also known as high frequency printed circuit board, is a specialized type of printed circuit board designed to operate at high frequencies. These PCBs are essential components in various electronic devices, especially those that require high-speed signal transmission and minimal signal loss.

The High Frequency PCB offered is RoHS compliant, ensuring that it meets the standards for Restriction of Hazardous Substances. This makes it environmentally friendly and safe for use in electronic products.

When it comes to quality, this High Frequency PCB is manufactured to IPC Class II or III standards. This ensures that the PCB meets stringent quality requirements, guaranteeing reliability and performance in demanding applications.

Designed as a Rogers Microwave Circuit Board, this High Frequency PCB is optimized for high-frequency applications. Rogers materials are known for their excellent electrical properties, making them ideal for high-speed and high-frequency circuits.

The surface treatment of this High Frequency PCB is OSP (Organic Solderability Preservative), which provides a protective layer to prevent oxidation and ensure good solderability. This surface treatment enhances the durability and reliability of the PCB.

For added protection during storage and transportation, this High Frequency PCB comes in a vacuum package. The vacuum packaging helps prevent moisture and contamination, ensuring the PCB remains in optimal condition until it is ready for use.

Features:

• Product Name: High Frequency PCB
• Package: Vacuum Package
• Min. line width/spacing: 0.075mm/0.075mm
• Surface Treatment: OSP
• Insulation Materials: Organic Resin
• PCB Type: Rogers Microwave Circuit Board

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the ONE High Frequency PCB (Model ONE-2) from China:

The ONE High Frequency PCB (Model ONE-2) is a top-quality high frequency printed circuit board designed for various applications that require superior performance and reliability. With a minimum line width/spacing of 0.075mm/0.075mm, this high frequency circuit board is perfect for demanding projects that need high precision.

Originating from China, the ONE High Frequency PCB (Model ONE-2) is manufactured using advanced technology and high-quality materials to ensure excellent performance. The final foil of 1 oz provides optimal conductivity and signal transmission, making it ideal for high frequency applications.

Measuring 16*19cm in size, this high frequency pcb is suitable for a wide range of electronic devices and equipment. Whether it's for telecommunications, aerospace, medical devices, or industrial equipment, the ONE High Frequency PCB (Model ONE-2) can meet the stringent requirements of various industries.

Each ONE High Frequency PCB (Model ONE-2) is carefully packaged in a vacuum package to protect it from environmental factors and ensure its integrity during transportation and storage. This packaging method helps maintain the quality and performance of the high frequency circuit board until it is ready for use.

Overall, the ONE High Frequency PCB (Model ONE-2) is a reliable and high-performance solution for any project that demands a high frequency pcb with precision, durability, and efficiency. Trust ONE for your high frequency printed circuit board needs.

Customization:

Our Product Customization Services for the High Frequency PCB include:

Brand Name: ONE

Model Number: ONE-2

Place of Origin: China

Surface Treatment: OSP

Usage: OEM Electronics, communication PCB

Quality: IPC(class II Or III)

Layer: 4 Layers

Insulation Materials: Organic Resin

Packing and Shipping:

Product Packaging:

The High Frequency PCB product will be carefully packaged in anti-static bags to prevent any damage during shipping. It will then be placed in a sturdy cardboard box with ample padding to ensure safe transit.

Shipping:

We offer various shipping options for the High Frequency PCB product, including standard shipping and expedited shipping for urgent orders. All shipments will be tracked and insured to provide peace of mind to our customers.
